Wi-Fi IPX System
WIFI IP PBX model WI-PBX50 is an advanced highly-integrated Smart Communication System
specially designed for SME (Small and Media Enterprises). It provides advanced WIFI router and
wireless IP PBX features and works compatibly with Wi-Fi phone, IP phone, VoIP gateway
equipments and standard SIP soft phone as well.
Hardware specifications:
Memory:
Flash:l 1gb
RAM: 128mbl
Ports: 2RJ45,1WAN, 1LANl
One USB portl
One LEDl display
Wifi specifications:
Standards supported : 802.11a, 802.11b,l 802.11g
Data rates: 1-54mbps l
Encryption: WEP, WPA, WPA2l
Reach:l 500M
Software specifications:
Sip specifications:
Protocols: H323, SIP, IAX, IAX2 l
Codecs: G711l ulaw, alaw, G729, G723, SPEEX, GSM
PABX features:
Alarm receiverl
Appendl message
Authenticationl
Automated attendantl
Blacklistsl
Blindl transfer
Call detail recordsl
Call forward on busyl
Call forward onl no answer
Call forward varialbel
Call monitoringl
Call parkingl
Call queingl
Call routing (DIDl&ANI)
Call snoopingl
Calll transfer
Call waitingl
Caller IDl
Caller ID blockingl
Caller IDl on Call waiting
Database integrationl
DUNDIl
DO notl Disturb
Interactive directory listingl
Local and remote agentsl
Musicl on hold
Music on Transferl
Predictive dialerl
Privacyl
Protocoll conversion
Remote call pickupl
Remote office supportl
Route by callerl id
Supervised transferl
Three way callingl
Trunkingl
Voicemaill
Voicemail to emaill
Webbased managementl
Networking features:
Client side : DHCP, STATIC, PPP, PPPOEl
Server side: DHCP,l STATIC
Firewall: IPTables l
Windows file sharing/networking: Sambal
Support Port forwarding l
Support Url filtering l
Supportl Remote update via tftp

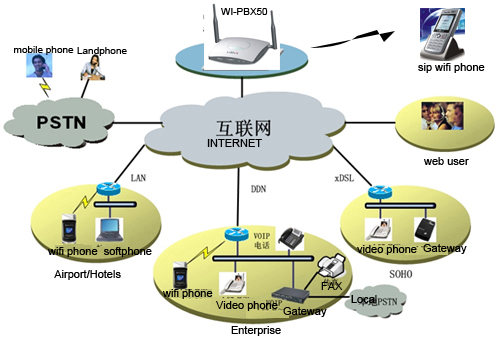

EXAMPLE NETWORK CONFIGURATION
WI-PBX50 is also a high performance router, delivers wireless speed up to 54Mbps data rate,
provides multi-functional capabilities, particularly the high performance throughput and high quality
security. Incorporating two Fast Ethernet ports and Wireless (802.11a/b/g) networking device,
enables your whole network sharing a high-speed cable or DSL. It also maximizes the performance
and ideal for media-centric applications like streaming video, gaming and Voice over IP technology.
Standard
- 802.11a/b/g, 802.3, 802.3u, Data Transfer Rate 1,2,5.5,6,9,11,12,18,24,36,48,54, and maximum of 54Mbps
Modulation Method
- PSK/CCK DQPSK/DBPSK/OFDM
Frequency Band
2.4GHz RF Output Power <13dBm 11a,< 17dBm 11b,< 14dBm 11g,
Receiver Sensitivity
11b: -80dBm 8%, 11g: -70dBm 10%
Operation Range
Indoors Up to 100 meters,Outdoor Up to 500 meters Antenna
External Antenna
(2x2) LED Power, Active (WLAN),
(Ethernet) Security
64 bit/128 bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK TKIP, AES
LAN interface
One Gigabit WAN Port ONE Gigabit LAN Ports USB Function File Server function
Power Consumption
12V DC Power Adapter Operating Temperature 0 ¨C 50¡ã C
ambient temperature
Storage Temperature -10 ~ 70¡ãC
ambient temperature Humidity 5 to 90 % maximum (non-condensing)
Dimension 150 x 150 x 46 mm
