Mesh-Smart / Wi-Fi Cost Effective Wireless Mesh Networking



Al McZeal introduces, the WiFi MESH-smart Wi-Fi units. Due to the growth of new demanding trend, for servicing WiFi mobile users (Laptops, Centrino ,USB WiFi devices etc..). World-Wide-Walkie-Talkie has built up, a new cost-effective, and deployment-efficient, WiFi MESH solution --- MESH-smart series, which we strongly believe,it will beat WiMax badly, in terms of costing and performance !!



        The MESH-Smart series, is a new concept, for serving the mobile users as a part of long range WISP network.

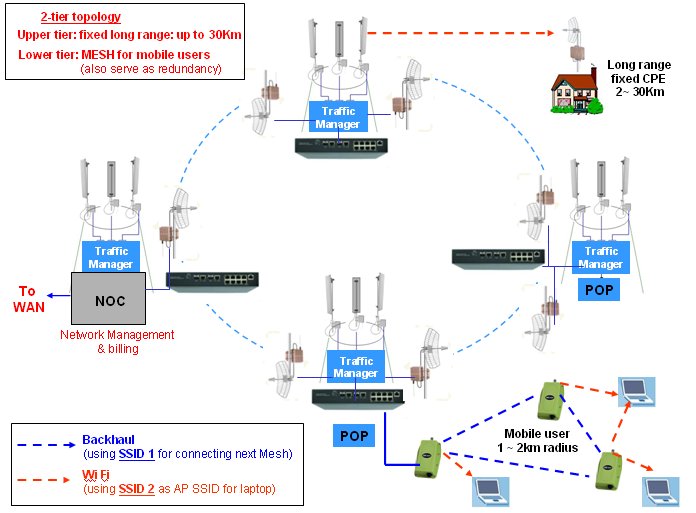

A particular deployment scenario, for long range users (fixed CPE) and mobile users (centrino, laptop, USB), is made smartly as follows



1)Upper tier: long range fixed AP and backhaul, for long range fixed CPE (Client) user.

2)Lower tier, Mesh-smart for mobile users, in a smaller, closed and independent zone.

It is very easy, and 'cost-effective' , to set up the Mesh group, for serving mobile users, and the operator can set up many different groups, along the way of backhaul or around the AP tower.

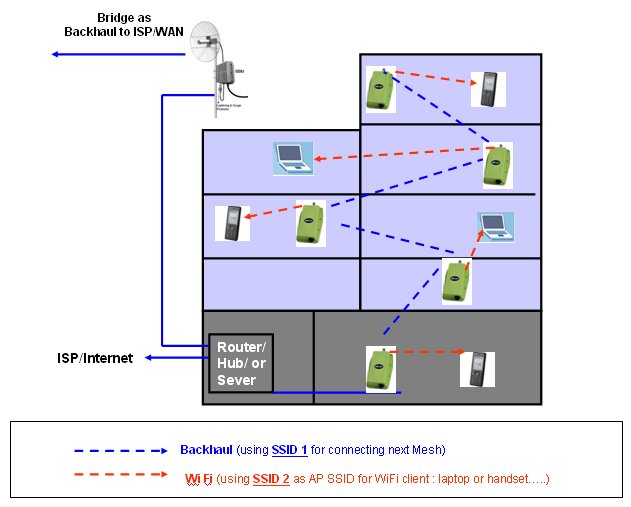

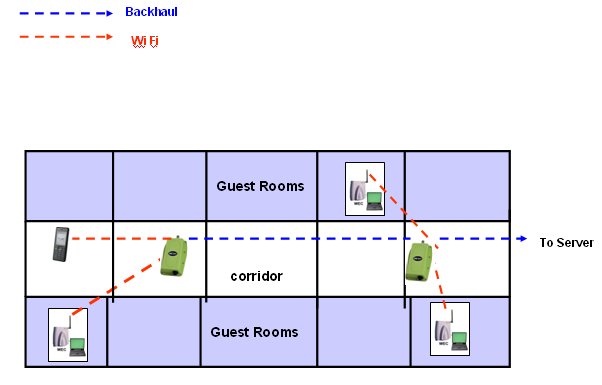

MESH-smart: this is a cost-effective solution, a single radio design, utilizing the time division concept, 1 radio with 2 x SSID to perform mesh application, basing on 2.4GHz, 802.11g/b,  1 x SSID for backhaul and 1 x SSID for AP; Though cost-effective, it is also weather proof suitable for both outdoor and indoor application, a smart design for smaller network base, and more closed space, like park, smaller community and streets, hotel, factory, offices, mall, condo, hostel, etc..

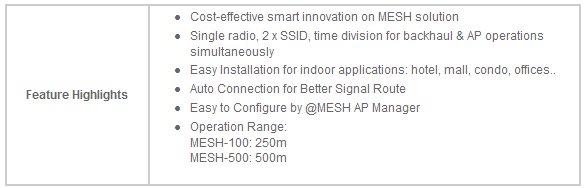

The ADVANTAGES Are

1)Cost-effective.

2)Easy deployment and installation.

3)Due to the 'auto best route connection', it also serves as 'automatical redundance'



4)It is weather proof for both outdoor and indoor application.

1)It is one radio unit cost-effective unit, supporting 2 x SSID for  AP(WiFi) + Backhaul(proprietary) simultaneously by time division scheme.

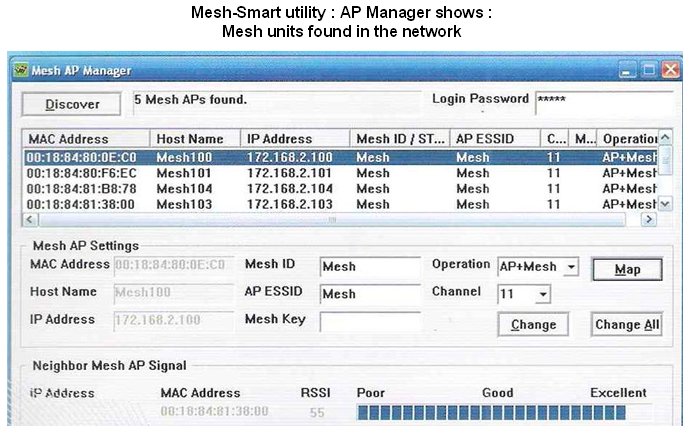

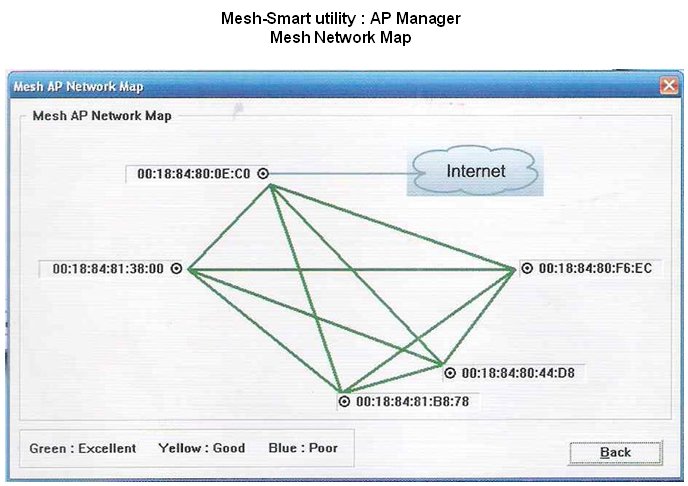

The key word for WiFi Mesh is the 'management software' in the unit, it will do 'auto best route selection' for each unit to find the best way to connect to the WAN,



While one unit or more, get to the limit of carrying too many users, or when one or more units will failure.



2)Due to the 'auto best route connection', it also serves as 'automatical redundance'.

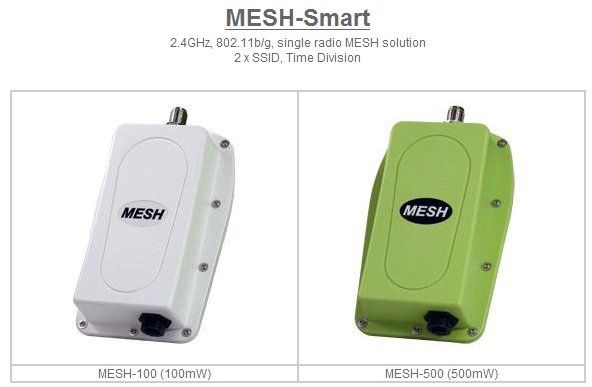

3)There are 2 models in the series:

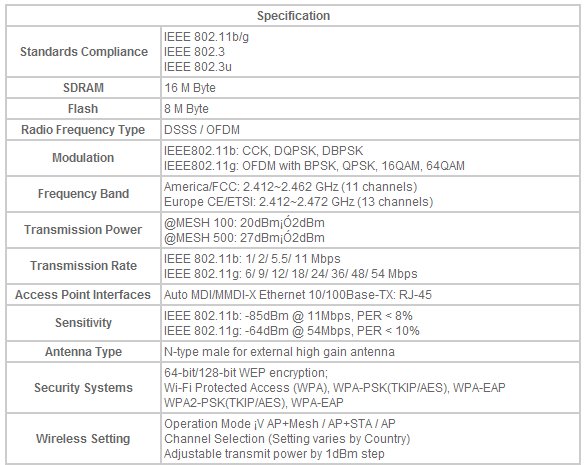

Mesh-100 : 2.4GHz, 802.11g/b; 100mW, up to 250 meters.



Mesh-500 : 2.4GHz, 802.11g/b; 500mW, up to 500 meters.



4)Though cost-effective and easy deployment, it is also weather-proof design ,capable for both outdoor and indoor application.
